TYPE HR I/S – STANDARD PITCH
Metal corrugated hose with standard pitch made of butt-welded pipe. The hose can be configured with one or two stainless steel wire braidings.
1.4541, 1.4404 Hasteloy, Monell, other materials available on request
Extraction of all media within a wide temperature range.
Installation: static or for cyclic movement with weak amplitude.
The hose, which is completely leak-proof owing to its design, is suitable for numerous applications in the following industries: chemicals, petrochemicals, refrigeration, nuclear, and thermal technology etc. Torsion must always be avoided.

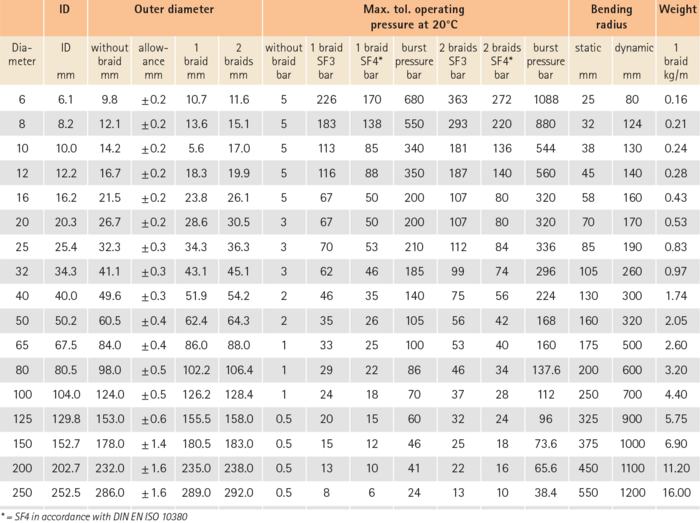

The table contains the following pressure values:
Pr = Burst pressure under "normal" conditions (hose straight and non-moving, inner pressure hydrostatic, temperature + 20 °C).
Pn Nominal pressure = Highest operating pressure in compliance with EN 10380 under "normal" conditions
Practical rule: Ps = Pn ·
Ps = Highest operating pressure under operating conditions
Kt = Correction factor for temperature
Ks = Safety factor, depending on application conditions
All hose lines are tested according to the requirements of DIN EN ISO 10380.
The test pressure is 1.5 times the operating pressure, converted to 20 °C.
Bending radius = Roll-up radius +
The table contains values for:
Rs = Theoretic static minimum bending radius (hose non-moving)
Rd = Theoretic dynamic minimum bending radius (repeated bending)
The theoretic values are allowed under weak pressure and for temperatures between - 30 °C and + 150 °C.
- • for – 30 °C < t < + 150 °C with operating pressure Pu
Bending radius = Rs (oder Rd) ·
- for t < - 30 °C or t > + 150 °C, regardless of which Pu
Bending radius = Rs (or Rd) · 1,5
Optimum resistance between - 269 °C (liquid helium) to + 550 °C, taking into account the above details.
